| Unit box height: | 0.4 |
| Description: | Š?ŠøŃ?Ń‚ŠµŠ¼Š° Š·Š±ŠµŃ€Ń–Š³Š°Š½Š½Ń¸ Š´Š°Š½ŠøŃ… QNAP TS-832PX-4G
Energy-efficient Quad-core Processor
Powered by 64-bit quad-core 1.7GHz ARM Cortex-A57 processor and 4 GB DDR4 RAM (expandable to 16 GB), the TS-832PX features is highly energy efficient without impacting system or application performance.
High-speed 10GbE and 2.5GbE connectivity
The TS-832PX includes two 10GbE SFP+ and two 2.5GbE LAN RJ45 ports, providing out-of-the-box support for high-speed networking and supporting Port Trunking and Failover to reinforce your network infrastructure. QNAP also provide many other high-speed networking solutions, including 10GbE/2.5GbE managed/unmanaged switches and network adapters, allowing you to build a budget-friendly high-speed network environment.
Extend NAS Functionality with a PCIe Card
With a PCIe Gen 2.0 slot, the TS-832PX provides flexibility in extending NAS functionality and potential applications. To optimize system p |
| Vendor homepage: | https://www.qnap.com/en/product/ts-832px |
| Output current: | 3.5 |
| Power consumption (sleep): | 27.949 |
| Power consumption (typical): | 50.858 |
| Power supply location: | Built-in |
| Power supply unit (psu) capacity: | 250 |
| Disk roaming: | Jā |
| Unit box length: | 0.42 |
| Unit box width: | 0.3 |
| Units per shipping box: | 1 |
| Unit calculated volume: | 0.0504 |
| Unit calculated weight: | 8 |
| Raid support: | Jā |
| Raid levels: | 0/1/10/10+HS/5/5+S/50/6/6+HS/60/JBOD |
| Storage drive capacity: | Nav |
| Storage drive interface: | Serial ATA III |
| Hot-swap drive bays: | Jā |
| Raid rebuild: | Jā |
| Bad block scan: | Jā |
| Summary: | QNAP TS-832PX. Type: NAS. Chassis type: Tower. Device class: Small & Medium Business. Processor family: Annapurna Labs, Processor model: AL324, Processor frequency: 1.7 GHz. Internal memory: 4 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QNAP Turbo System |
| Storage drive sizes supported: | 2.5/3.5 |
| Dynamic dns (ddns): | Jā |
| Internal memory type: | DDR4 |
| Maximum ram supported: | 16 |
| Memory clock speed: | 2400 |
| Memory form factor: | SO-DIMM |
| Memory slots: | 1 |
| Dhcp client: | Jā |
| Dhcp server: | Jā |
| Internal memory: | 4 |
| Flash memory: | 512 |
| Processor model: | AL324 |
| Processor manufacturer: | Annapurna Labs |
| Installed storage drive type: | No |
| Storage drives installed: | No |
| Supported file systems: | ext3/ext4/FAT32/HFS+ |
| Supported storage drive interfaces: | Serial ATA II,Serial ATA III |
| Supported storage drive types: | HDD & SSD |
| Total installed storage capacity: | Nav |

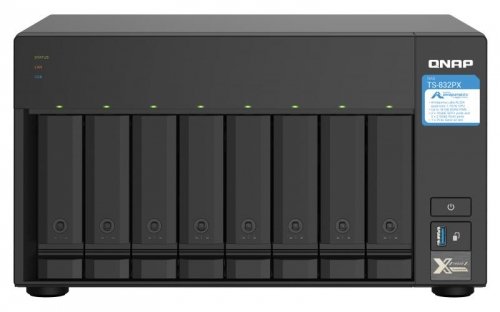

| Model: | QNAP TS-832PX-4G |
| Number of storage drives supported: | 8 |
| Online raid expansion: | Jā |
| Online raid migration: | Jā |
| Depth: | 279.6 |
| Height: | 188.2 |
| Package depth: | 390 |
| Package height: | 417 |
| Package weight: | 8000 |
| Package width: | 295 |
| Weight: | 7050 |
| Width: | 329.3 |
| Cables included: | AC/LAN (RJ-45) |
| Number of screws: | 56 |
| Package type: | Box |
| Operating relative humidity (h-h): | 5 - 95 |
| Operating temperature (t-t): | 0 - 40 |
| Storage temperature (t-t): | -20 - 70 |
| Harmonized system (hs) code: | 84714100 |
| Warranty period: | 2 |
| Model name: | TS-832PX |
| Processor frequency: | 1.7 |
| Processor family: | Annapurna Labs |
| Processor cores: | 4 |
| Processor architecture: | ARM Cortex-A57 |
| Number of processors supported: | 1 |
| Mac operating systems supported: | Mac OS X 10.0 Cheetah/Mac OS X 10.1 Puma/Mac OS X 10.10 Yosemite/Mac OS X 10.11 El Capitan/Mac OS X 10.12 Sierra/Mac OS X 10.13 High Sierra/Mac OS X 10.14 Mojave/Mac OS X 10.15 Catalina/Mac OS X 10.15.3 Catalina |
| Operating system installed: | QNAP Turbo System |
| Operating system version: | 5.0.0 |
| Other operating systems supported: | IBM AIX 7.1/IBM AIX 7.2/Solaris 10 |
| Server operating systems supported: | Windows Server 2008 R2/Windows Server 2012/Windows Server 2012 R2/Windows Server 2016/Windows Server 2019 |
| Ac input frequency: | 50 - 60 |
| Ac input voltage: | 100 - 240 |
| Fan voltage: | 12 |
| Number of power supply units: | 1 |
| Load balancing system: | Jā |
| Link aggregation: | Jā |
| Jumbo frames support: | Jā |
| Iscsi support: | Jā |
| Ethernet lan data rates: | 100/1000/10000/2500 |
| Ethernet lan: | Jā |
| Wake-on-lan ready: | Jā |
| Wlan adapter supported: | Jā |
| Ethernet lan (rj-45) ports: | 2 |
| Fiber optic connector: | SFP+ |
| Fiber ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 3 |
| Usb port: | Jā |
| Cable lock slot: | Jā |
| Cable lock slot type: | Kensington |
| Chassis type: | Tower |
| Cooling type: | Active |
| Drive bay locking: | Jā |
| Fan diameter: | 120 |
| Fan diameter 2: | 60 |
| Led indicators: | HDD/LAN/Status/System/USB |
| Number of fans: | 3 |
| Product colour: | Aluminium/Black |
| Access control list (acl): | Jā |
| Backup button: | Jā |
| Backup features: | Cloud/iSCSI LUN/USB drive |
| Backup function: | Jā |
| Browser supported: | Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox |
| Built-in bittorrent client: | Jā |
| Built-in ftp server: | Jā |
| Buzzer: | Jā |
| Device class: | Small & Medium Business |
| Hot spare: | Jā |
| Management protocols: | SNMP |
| Noise level: | 19.6 |
| On/off switch: | Jā |
| Usb copy function: | Jā |
| Web-based management: | Jā |
| Linux operating systems supported: | CentOS 7.0/Ubuntu 14.04 |
| System log: | Jā |
| Third-party support: | Jā |
| Type: | NAS |
| Universal plug and play (upnp): | Jā |
| Snapshot: | Jā |
| Remote administration: | 256-bit AES,FIPS 140-2,HTTPS,SNMP,SSH |
| Remotely operated: | Jā |
| Reset button: | Jā |
| S.m.a.r.t. support: | Jā |
| Security algorithms: | 256-bit AES/FIPS 140-2/HTTPS/SNMP/SSH |
| Share folder access right management: | Jā |
