| Description: | High performance AMD Ryzenā„¢ processor

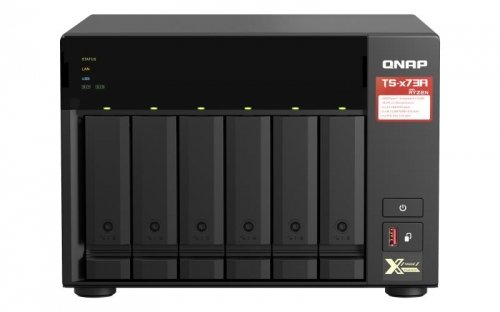

The TS-673A is powered by an AMD Ryzenā„¢ V1000 series V1500 quad-core 2.2 GHz processor with up to 64GB RAM (ECC memory is supported*) and features USB 3.2 Gen 2 ports for speeds up to 10 Gb/s. The TS-673A also provides one USB Type-C port for supporting more devices to transfer large media files across devices, providing you with a more efficient workflow.
Transform your network with a wallet-friendly 2.5GbE switch
Upgrading your network shouldnā€™t break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. QNAP offers 2.5GbE switches that supports Multi-Gigabit NBASE-Tā„¢ and allows you to use existing CAT5e cables to connect multiple computers and NAS, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.
Switch operating systems for optimal data integrity and reliability
The TS-673A also supports QuTS |
| Vendor homepage: | https://www.qnap.com/en/product/ts-673a/specs/hardware |
| Storage drive capacity: | Nav |
| Power supply unit (psu) capacity: | 250 |
| Height: | 188.2 |
| Depth: | 279.6 |
| Storage drives installed: | No |
| Supported file systems: | ext3/ext4/FAT32/HFS+/NTFS |
| Fan diameter: | 60 |
| Fan diameter 2: | 92 |
| Unit calculated weight: | 8.23 |
| Units per shipping box: | 2 |
| Unit calculated volume: | 0.05836 |
| Storage drive sizes supported: | 2.5/3.5/M.2 |
| Raid rebuild: | Jā |
| Unit box width: | 0.305 |
| Unit box length: | 0.425 |
| Unit box height: | 0.39 |
| Storage drive interface: | M.2,Serial ATA II,Serial ATA III |
| Warranty period: | 2 |
| Password authentication: | Jā |
| Remotely operated: | Jā |
| Reset button: | Jā |
| S.m.a.r.t. support: | Jā |
| Installed storage drive type: | No |
| Number of m.2 (m & b) slots: | 2 |
| Number of storage drives supported: | 8 |
| Number of system drives installed: | 1 |
| Raid levels: | 0/1/10/5/50/6/JBOD |
| Power consumption (typical): | 45.898 |
| Power supply location: | Built-in |
| On/off switch: | Jā |
| Windows operating systems supported: | Windows 10/Windows 11/Windows 7/Windows 8 |
| Model name: | TS-673A |
| Ac input frequency: | 50 - 60 |
| Ac input voltage: | 100 - 240 |
| Number of power supply units: | 1 |
| Cooling type: | Active |
| Server operating systems supported: | Windows Server 2008 R2/Windows Server 2012/Windows Server 2012 R2/Windows Server 2016/Windows Server 2019 |
| Operating system version: | 5.0.0 |
| Other operating systems supported: | Solaris 10 |
| Harmonized system (hs) code: | 84714100 |
| Snapshot: | Jā |
| Type: | NAS |
| Linux operating systems supported: | CentOS 7.0/Ubuntu 14.04 |
| Supported storage drive types: | HDD & SSD |
| System drive capacity: | 5 |
| Total installed storage capacity: | Nav |
| Number of processors supported: | 1 |
| Raid support: | Jā |
| Mac operating systems supported: | Mac OS X 10.10 Yosemite/Mac OS X 10.11 El Capitan/Mac OS X 10.12 Sierra/Mac OS X 10.13 High Sierra/Mac OS X 10.14 Mojave/Mac OS X 10.15 Catalina/Mac OS X 10.15.3 Catalina/Mac OS X 10.2 Jaguar/Mac OS X 10.3 Panther/Mac OS X 10.4 Tiger/Mac OS X 10.5 Leopard |
| Operating system installed: | QNAP Turbo System |
| Package depth: | 383 |
| Package height: | 345 |
| Package weight: | 7530 |
| Package width: | 255 |
| Weight: | 5780 |
| Width: | 264.3 |
| Package type: | Box |
| Operating relative humidity (h-h): | 5 - 95 |
| Operating temperature (t-t): | 0 - 40 |
| Storage temperature (t-t): | -20 - 70 |
| Power consumption (sleep): | 21.891 |
| Processor frequency: | 2.2 |
| Processor generation: | AMD Ryzen Embedded V1000 Series |
| Security algorithms: | 256-bit AES/FIPS 140-2/SSH/SSL/TLS |
| Supported storage drive interfaces: | M.2,Serial ATA II,Serial ATA III |
| Housing material: | Metal |
| Led indicators: | HDD/LAN/Power/SSD/Status/USB |
| Number of fans: | 3 |
| Product colour: | Black |
| Access control list (acl): | Jā |
| Backup features: | Cloud/iSCSI LUN |
| Backup function: | Jā |
| Browser supported: | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| Built-in ftp server: | Jā |
| Buzzer: | Jā |
| Device class: | Small & Medium Business |
| Hot spare: | Jā |
| Noise level: | 20.3 |
| Summary: | QNAP TS-673A. Type: NAS. Chassis type: Tower. Device class: Small & Medium Business. Processor family: Ryzen Embedded, Processor model: V1500B, Processor frequency: 2.2 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QNAP Turbo System |
| Processor manufacturer: | AMD |
| Processor model: | V1500B |
| Processor threads: | 8 |
| Ecc: | Jā |
| Flash memory: | 5000 |
| Internal memory: | 8 |
| Internal memory type: | DDR4 |
| Maximum ram supported: | 64 |
| Memory form factor: | SO-DIMM |
| Memory slots: | 2 |
| Dhcp server: | Jā |
| Dynamic dns (ddns): | Jā |
| Ethernet lan: | Jā |
| Ethernet lan data rates: | 100/1000/2500/5000 |
| Iscsi support: | Jā |
| Jumbo frames support: | Jā |
| Wake-on-lan ready: | Jā |
| Concurrent connections: | 2000 |
| Ethernet lan (rj-45) ports: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-c ports quantity: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 3 |
| Usb port: | Jā |
| Cable lock slot: | Jā |
| Cable lock slot type: | Kensington |
| Chassis type: | Tower |
| Processor cores: | 4 |
| Processor family: | Ryzen Embedded |
| Units per pallet: | Nav |
| Hot-swap drive bays: | Jā |
