| Vendor homepage: | https://www.tp-link.com/my/business-networking/vigi-network-camera/vigi-c440/ |
| Image quality adjustment: | Brightness/Contrast/Mirror/Saturation/Sharpness |
| Digital wide dynamic range (dwdr): | Jā |
| Description: | All The Colors, All The Time 4MP Full-Color Turret Network Camera
Plug & Play with One Cable Enjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled.
We keep an eye on your business. Smart Detection Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
Motion Detection Get instant notifications when your camera detects motion.
Area Intrusion Set customized activity zones around key areas for more focused monitoring.
Line-Crossing Set a boundary and receive an alert anytime a person crosses it from either or both directions.
Camera Tampering Receive alerts when someone obstructs the camera.
Active Defense Warn and expel potential intruders instantly with sound and light alarms when abnormal events are detect |
| Model: | VIGI C440 (4MM) |
| Maximum aperture number: | 1.6 |
| Unit box length: | 0.16 |
| Unit box height: | 0.12 |
| Unit box width: | 0.16 |
| Manual: | Jā |
| Mounting template: | Jā |
| Compliance certificates: | CE/RoHS |
| Number of lenses: | 1 |
| Observe distance: | 33 |
| Recognize distance: | 16 |
| Supported network protocols: | ONVIF, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Frame rate: | 30 |
| Height: | 84 |
| Units per shipping box: | 1 |
| Unit calculated volume: | 0.003072 |
| Unit calculated weight: | 0.427 |
| Number of cameras: | 1 |
| Screws included: | Jā |
| Maximum resolution: | 2560 x 1440 |
| Noise reduction: | Jā |
| Noise reduction technology: | 3D noise reduction |
| Privacy masking: | Jā |
| Supported graphics resolutions: | 1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/320 x 240/352 x 288/640 x 480 (VGA) |
| Identify distance: | 8 |
| Total megapixels: | 4 |
| Video compression formats: | H.264/H.264+/H.265/H.265+ |
| Audio system: | 2-way |
| Built-in microphone: | Jā |
| Infra-red wavelength: | 850 |
| Led type: | IR |
| Night vision: | Jā |
| Night vision distance: | 30 |
| Back light compensation (blc): | Jā |
| Bit rate: | 64 Kbps - 4 Mbps |
| Built-in speaker(s): | Jā |
| Bluetooth: | No |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan: | Jā |
| Networking standards: | IEEE 802.3af/IEEE 802.3at |
| Number of users: | 21 |
| Streaming method: | Multicast |
| Password protection: | Jā |
| Password reset via email: | Jā |
| Video motion detection: | Jā |
| Reset button: | Jā |
| Dc output voltage: | 12 |
| Power consumption (max): | 5.5 |
| Power source type: | DC,PoE |
| Operating temperature (t-t): | -30 - 60 |
| Diameter: | 123 |
| Mirror: | Jā |
| Ip address filtering: | Jā |
| Intelligent video surveillance (ivs) system features: | Crossing line/Human detection/Intrusion |
| Https encryption: | Jā |
| Digest authentication: | Jā |
| Active tampering alarm: | Jā |
| Ethernet lan (rj-45) ports: | 1 |
| Wi-fi: | No |
| Built-in hdd: | No |
| Card reader integrated: | Jā |
| Compatible memory cards: | MicroSD (TransFlash) |
| Dc-in jack: | Jā |
| Sensor type: | CMOS |
| Detect distance: | 80 |
| Focal length range: | 4 |
| Progressive scan: | Jā |
| Package depth: | 163 |
| Package height: | 116 |
| Package weight: | 400 |
| Package width: | 163 |
| Sustainability compliance: | Jā |
| Anchors included: | Jā |

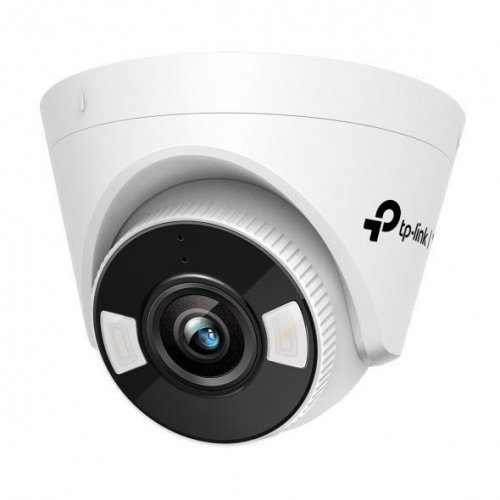

| Summary: | TP-Link VIGI C440(4mm). Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Angle of rotation: 360°, Lens viewing angle, horizontal: 79°, Lens viewing angle, vertical: 43°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m |
| Form factor: | Turret |
| Housing material: | Plastic |
| Mounting type: | Ceiling |
| Product colour: | White |
| Certification: | RCM, BSMI, VCCI |
| Connectivity technology: | Wired |
| Day/night mode: | Jā |
| Infrared (ir) cut-off filter: | Jā |
| Placement supported: | Indoor & outdoor |
| Type: | IP security camera |
| Angle of rotation: | 360 |
| Camera pan control: | Jā |
| Camera tilt control: | Jā |
| Lens viewing angle, diagonal: | 93 |
| Lens viewing angle, horizontal: | 79 |
| Lens viewing angle, vertical: | 43 |
| Minimum illumination: | Nav |
| Pan range: | 0 - 360 |
| Tilt angle range: | 0 - 85 |
| Optical sensor size: | 1/3 |
