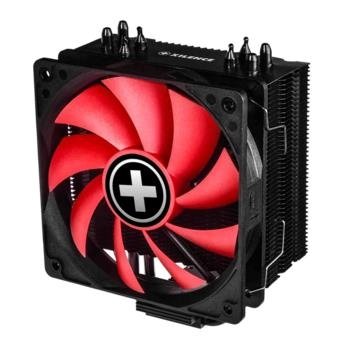

| Description: | The new M704 is the first CPU cooler to widening the Performance A+ series. Just like the power supplies, this CPU cooler is completely black, with a red fan. The M704 has four equally black, extremely efficient heat pipes, which allow for a cooling capacity of up to 200W.
The red 120mm PWM fan completes the CPU cooler, which is especially appropriate for gaming systems with potent multicore processors. Thanks to the multi-socket design, the cooler can be applied on all current AMD and Intel sockets.
Included in the scope of delivery is – besides heatsink and 120mm PWM fan – mounting material for sockets LGA1700/1954/1151/1150/1155/1851/1156/1200 and AM4 / AM5 illustrated assembly instructions as well as a tube of thermal paste. - silent, hydro bearing 120mm PWM-fan
- black heat-sink
- four black 6mm copper heat pipes for better heat flow
- fin Design for high airflow and efficient cooling of the CPU and surrounding components
- slight overhang of the f
|
| Vendor homepage: | https://www.xilence.net/en/cpu-coolers/113 |
| Products per master (outer) case: | 12 |
| Model name: | M704 |
| Number of fans: | 1 |
| Units per shipping box: | 1 |
| Bearing type: | Hydraulic |
| Model: | XC051 |
| Unit calculated weight: | 0.93 |
| Compatible processor series: | AMD A/IntelĀ® CeleronĀ®/IntelĀ® Coreā„¢ i3/IntelĀ® Coreā„¢ i5/IntelĀ® Coreā„¢ i7/IntelĀ® PentiumĀ® |
| Unit calculated volume: | 0.0039 |
| Rotational speed (max): | 1600 |
| Unit box height: | 0.18 |
| Maximum airflow: | 70 |
| Unit box width: | 0.138 |
| Unit box length: | 0.157 |
| Supported processor sockets: | LGA 1150 (Socket H3)/LGA 1151 (Socket H4)/LGA 1155 (Socket H2)/LGA 1156 (Socket H)/LGA 1200 (Socket H5)/LGA 1700/LGA 1851/LGA 1954/Socket AM4/Socket AM5 |
| Fan diameter: | 120 |
| Pulse-width modulation (pwm) support: | Jā |
| Fan connector: | 4-pin |
| Summary: | Xilence M704. Type: Cooler, Fan diameter: 12 cm, Rotational speed (min): 700 RPM, Rotational speed (max): 1600 RPM, Bearing type: Hydraulic. Width: 120 mm, Depth: 75 mm, Height: 160 mm. Product colour: Black, Red |
| Rotational speed (min): | 700 |
| Suitable location: | Processor |
| Noise level (high speed): | 32.5 |
| Noise level (low speed): | 18 |
| Fins material: | Aluminium |
| Material: | Aluminium/Cooper |
| Type: | Cooler |
| Number of fan blades: | 9 |
| Number of heat pipes: | 4 |
| Product colour: | Black/Red |
| Rated voltage: | 12 |
| Depth: | 75 |
| Fan dimensions (w x d x h): | 120 x 120 x 25 |
| Heat pipes diameter: | 6 |
| Height: | 160 |
| Package depth: | 147 |
| Package height: | 110 |
| Package weight: | 864 |
| Package width: | 205 |
| Weight: | 426 |
| Width: | 120 |
| Compliance certificates: | RoHS |
| Harmonized system (hs) code: | 84733080 |
| Master (outer) case gross weight: | 9800 |
| Master (outer) case height: | 240 |
| Master (outer) case length: | 580 |
| Master (outer) case width: | 320 |
