| Vendor homepage: | https://www.tp-link.com/en/business-networking/omada-switch-poe/sg3452xp/ |
| Series: | Omada |
| Description: | TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks. |
| Switch layer: | L2+ |
| Switch type: | Managed |
| Switching capacity: | 176 |
| Power connector: | AC-in jack |
| Model name: | TL-SG3452XP |
| Forwarding rate: | 130.9 |
| Unit box width: | 0.44 |
| Unit box length: | 0.53 |
| Unit box height: | 0.1 |
| Web-based management: | Jā |
| Quality of service (qos) support: | Jā |
| Power consumption (max): | 635.7 |
| Ac input voltage: | 100 - 240 |
| Ac input frequency: | 50/60 |
| Sfp+ module slots quantity: | 4 |
| Units per shipping box: | 1 |
| Unit calculated volume: | 0.02332 |
| Unit calculated weight: | 6.6 |
| Total power over ethernet (poe) budget: | 500 |
| Rack mounting: | Jā |
| Reset button: | Jā |
| Console port: | RJ-45/Micro-USB |
| Power over ethernet (poe) power per port: | 30 |
| Power over ethernet (poe): | Jā |
| Power supply included: | Jā |
| Power source: | AC |
| System event log: | Jā |
| 10g support: | Jā |
| Broadcast storm control: | Jā |
| Flow control support: | Jā |
| Head-of-line (hol) blocking: | Jā |
| Certification: | CE, FCC, RoHS |
| Basic switching rj-45 ethernet ports quantity: | 48 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Heat dissipation: | 2169.2 |
| Operating relative humidity (h-h): | 10 - 90 |
| Operating temperature (t-t): | 0 - 40 |
| Storage relative humidity (h-h): | 5 - 90 |
| Storage temperature (t-t): | -40 - 70 |
| Depth: | 330 |
| Height: | 44 |
| Width: | 440 |
| Cables included: | AC |
| Quick start guide: | Jā |
| Power over ethernet plus (poe+) ports quantity: | 48 |

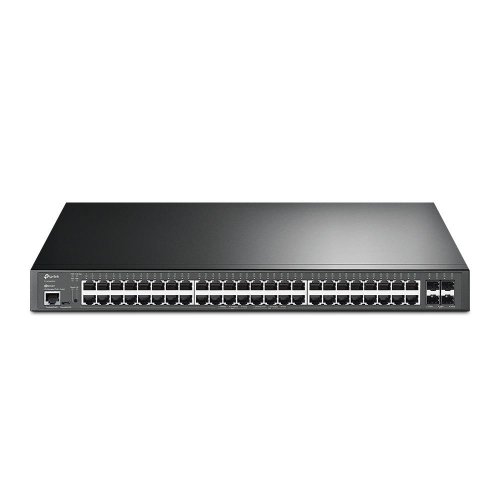

| Summary: | TP-Link Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U |
| Arp inspection: | Jā |
| Cloud-managed: | Jā |
| Configuring location settings (cli): | Jā |
| Link aggregation: | Jā |
| Networking standards: | IEEE 802.1D/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z |
| Port mirroring: | Jā |
| Rate limiting: | Jā |
| Spanning tree protocol: | Jā |
| Vlan support: | Jā |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Jā |
| Mac address table: | 16000 |
| Packet buffer memory: | 12 |
| Store-and-forward: | Jā |
| Access control list (acl): | Jā |
| Authentication: | Auto VLAN,Guest VLAN |
| Bpdu filtering/protection: | Jā |
| Dhcp features: | DHCP client/DHCP relay/DHCP server |
| Igmp snooping: | Jā |
| Ip-mac-port binding: | Jā |
| Mac address filtering: | Jā |
| Ssh/ssl support: | Jā |
| Static port security: | Jā |
| Multicast support: | Jā |
| Form factor: | 1U |
| Led indicators: | Jā |
| Number of fans: | 3 |
| Product colour: | Black |
