| Unit box length: | 0.34 |
| Description: | - Complete protection against blackout and power surges (overvoltages and undervoltages)
- Recommended for Personal Computers, DVR / NVR and video surveillance systems, ADSL / fiber modem, switch / router, cash registers
- Not suitable with power supplies with Active PFC circuit (Server, PC game, video game console, workstation, Mac computer), lamps and electric motors
- AVR Automatic Voltage Regulator electronic circuit
- n 2 Italy / Schuko output sockets and n 1 schuko input cable
- outputs socket protected against blackout
- outputs socket protected against overvoltages
- multifunction LED and on-off button
- USB port for UPS control / monitoring and ignition programming / shutdown via Tecnomanager software
- UPS management software TecnoManager compatible with Windows, Mac OS X, Linux etc
|
| Vendor homepage: | https://www.tecnoware.com/en-US/Dettaglio/Articolo/55 |
| Input operation voltage (max): | 230 |

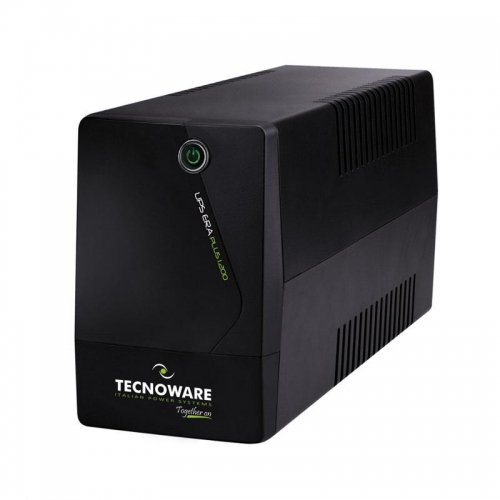

| Summary: | Tecnoware FGCERAPL1202SCH. UPS topology: Standby (Offline), Output power capacity: 1.2 kVA, Output power: 840 W. AC outlet types: Type F, AC outlets quantity: 2 AC outlet(s), USB port type: Micro-USB B. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min, Typical backup time at half load: 40 min. Form factor: Compact, Product colour: Black, International Protection (IP) code: IP20. Width: 101 mm, Depth: 279 mm, Height: 142 mm |
| Product colour: | Black |
| Unit box width: | 0.185 |
| Unit box height: | 0.22 |
| Input frequency: | 50/60 |
| Units per shipping box: | 4 |
| Unit calculated volume: | 0.01229 |
| Depth: | 279 |
| Unit calculated weight: | 4.69 |
| Operating temperature (t-t): | 20 - 25 |
| Ac outlet types: | Type F |
| Ac outlets quantity: | 2 |
| International protection (ip) code: | IP20 |
| Height: | 142 |
| Weight: | 4500 |
| Width: | 101 |
| Package depth: | 340 |
| Package height: | 220 |
| Package width: | 180 |
| Typical backup time at half load: | 40 |
| Form factor: | Compact |
| Usb port: | Jā |
| Usb port type: | Micro-USB B |
| Battery technology: | Sealed Lead Acid (VRLA) |
| Typical backup time at full load: | 10 |
| Input operation voltage (min): | 230 |
| Noise level: | 40 |
| Number of input phases: | 1 |
| Number of output phases: | 1 |
| Output frequency: | 50/60 |
| Output operation voltage (min): | 230 |
| Output power: | 840 |
| Output power capacity: | 1.2 |
| Power factor: | 0.7 |
| Ups topology: | Standby (Offline) |
| Units per pallet: | Nav |
