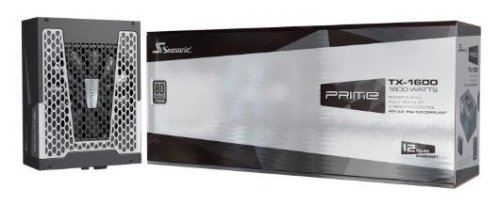

| Model name: | PRIME TX ATX 3.0 |
| Vendor homepage: | https://seasonic.com/prime-tx#gallery |
| Unit box height: | 0.195 |
| Unit box length: | 0.455 |
| Unit box width: | 0.125 |
| Description: | Pressing on with its One Seasonic Initiative, the PRIME TX, PRIME PX and PRIME GX series became the successors to the Seasonic PRIME and PRIME Ultra series.
The PRIME Series has always demonstrated outstanding performance and have become the epitome of technological excellence and quality through the years. This third generation of PRIME Series rolled out not only with a uniformed naming scheme but also with updated general design and connection cables. As each new model in these PRIME series have their distinctive set of features and specifications, prospective customers will find a streamlined buying guidance through understanding the One Seasonic process.
80 PLUS TITANIUM The PRIME Titanium Series achieves the highest level of 80 PLUS Titanium certification on the market with its 94 % efficiency at 50 % system load.
MICRO TOLERANCE LOAD REGULATION Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. |
| Unit calculated weight: | 6.14 |
| Units per shipping box: | 4 |
| Unit calculated volume: | 0.01406 |
| Cooling type: | Active |
| Fan diameter: | 135 |
| Number of fans: | 1 |
| On/off switch: | Jā |
| Product colour: | Black |
| Operating temperature (t-t): | 0 - 50 |
| Cable tie(s) included: | Jā |
| Cables included: | AC,PCIe,Peripheral (Molex),Peripheral (Molex) to SATA 3.3,SATA |
| Depth: | 210 |
| Height: | 86 |
| Width: | 150 |
| Package type: | Box |
| Summary: | Seasonic Prime -TX-1600. Total power: 1600 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
| Power supply unit (psu) form factor: | ATX |
| Mean time between failures (mtbf): | 150000 |
| Power protection features: | Over current/Over voltage/Short circuit |
| Total power: | 1600 |
| Cabling type: | Fully-Modular |
| Motherboard power cable length: | 610 |
| Motherboard power connector: | 20+4 pin ATX |
| Number of sata power connectors: | 10 |
| Pci express connector: | Jā |
| Peripheral (molex) power connectors (4-pin): | 3 |
| 80 plus certification: | 80 PLUS Titanium |
| Bearing technology: | FDB |
| Compatible products: | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Max output current (-12v): | 0.5 |
| Max output current (+5vsb): | 3 |
| Max output current (+5v): | 25 |
| Max output current (+3.3v): | 25 |
| Max output current (+12v): | 133.3 |
| Input current: | 15 - 10 |
| Combined power (-12v): | 6 |
| Ac input frequency: | 50 - 60 |
| Ac input voltage: | 100 - 240 |
| Combined power (+12v): | 1600 |
| Combined power (+3.3v): | 125 |
| Combined power (+5v): | 125 |
| Combined power (+5vsb): | 15 |
| Purpose: | PC |
| Units per pallet: | Nav |
