| Units per shipping box: | 6 |
| Peripheral (molex) power connectors (4-pin): | 2 |
| 80 plus certification: | 80 PLUS Bronze |
| Product colour: | Black |
| Operating temperature (t-t): | 0 - 40 |

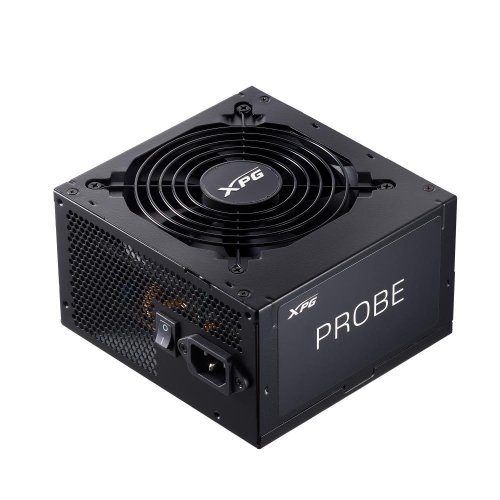

| Summary: | XPG PROBE 600 BRONZE Power Supply. Total power: 600 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM |
| Model name: | PROBE BRONZE Power Supply |
| Motherboard power connector: | 20+4 pin ATX |
| Number of sata power connectors: | 5 |
| Pci express power connectors (6+2 pin): | 2 |
| Total power: | 600 |
| Atx power connector (24-pin): | Jā |
| Cabling type: | Non-Modular |
| Eps power connector (4+4 pin): | Jā |
| Unit calculated volume: | 0.006581 |
| Vendor homepage: | https://www.xpg.com/en/xpg/pc-components-probe-bronze?tab=desc# |
| Unit calculated weight: | 2.03 |
| Number of fans: | 1 |
| Description: | VIABLE, APPLIABLE, & RELIABLE With up to 87% efficiency at 50% load and a 120mm low-noise fan featuring an intelligent curve, XPG PROBE is designed to deliver stable and reliable power to your system!
Enhanced Safety in Operation Unlike most Bronze power supply units, XPG PROBE is ATX v2.52 compliant, enhancing overall reliability and providing safer operation for your current and future hardware.
Compact Size for Easy Installation With a compact 140mm length, XPG PROBE allows for easier installation in mainstream PC cases and reduced cable clutter.
Intelligent Fan-Curve Design The 120mm low-noise sleeve-bearing fan, featuring an intelligent curve design, keeps the power supply cool without excessive noise, thus reducing power consumption for cooling and improving overall energy efficiency.
Long, Reliable Lifespan XPG PROBE comes with premium capacitors with a 105°C rating, offering greater reliability, premium efficiency, and a |
| Unit box width: | 0.1 |
| Unit box length: | 0.265 |
| Unit box height: | 0.195 |
| Ac input frequency: | 47 - 63 |
| Width: | 150 |
| Depth: | 140 |
| Height: | 86 |
| Weight: | 1480.1 |
| Certification: | CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM |
| Fan diameter: | 120 |
| Cooling type: | Active |
| Atx version: | 2.52 |
| Bearing technology: | Sleeve |
| Mean time between failures (mtbf): | 100000 |
| Power supply unit (psu) form factor: | ATX |
| Purpose: | PC |
| Power protection features: | Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under voltage |
| Max output current (+5vsb): | 2.5 |
| Max output current (-12v): | 0.3 |
| Power factor: | 0.99 |
| Power factor correction (pfc) type: | Active |
| Ac input voltage: | 100 - 240 |
| Input current: | 10 |
| Max output current (+12v): | 46 |
| Max output current (+3.3v): | 19 |
| Max output current (+5v): | 17 |
| Fan speed: | 2160 - 2640 |
| Units per pallet: | Nav |
