| Unit box height: | 0.23 |

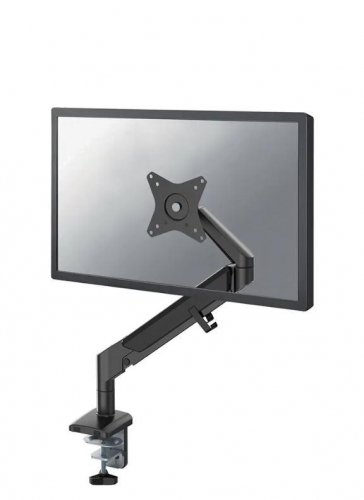

| Description: | The Neomounts DS70-810BL1 is a full motion desk mount for one flat screen up to 32" with a maximum weight capacity of 9 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL1 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management clips ensure orderly routing of the cables.
Due to the short T-RexĀ® upper arm, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL1 |
| Vendor homepage: | https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-810BL1 |
| Unit calculated weight: | 3.6 |
| Unit box width: | 0.12 |
| Unit box length: | 0.41 |
| Units per shipping box: | 1 |
| Unit calculated volume: | 0.01132 |
| Country of origin: | China |
| Harmonized system (hs) code: | 7326909890 |
| Master (outer) case gross weight: | 22300 |
| Maximum weight capacity (per curved/ultra-wide display): | 9 |
| Master (outer) case height: | 370 |
| Master (outer) case length: | 415 |
| Master (outer) case net weight: | 18000 |
| Master (outer) case width: | 465 |
| Products per master (outer) case: | 6 |
| Products per pallet (eu): | 72 |
| Desk thickness (min): | 10 |
| Maximum screen size: | 32 |
| Maximum vesa mount: | 100 x 100 |
| Maximum weight capacity: | 9 |
| Maximum weight capacity (per display): | 9 |
| Minimum screen size: | 17 |
| Minimum weight: | 1 |
| Height: | 615 |
| Weight: | 3000 |
| Width: | 117 |
| Package depth: | 117 |
| Package height: | 400 |
| Package net weight: | 3600 |
| Package weight: | 3600 |
| Package width: | 222 |
| Quantity per pack: | 1 |
| Desk thickness (max): | 85 |
| Height adjustment range: | 265 - 550 |
| Height adjustment type: | Gas spring |
| Pivot angle: | -180 - 180 |
| Rotating: | Jā |
| Swivel angle range: | -90 - 90 |
| Swivelling: | Jā |
| Tilt adjustment: | Jā |
| Tilt angle range: | -45 - 45 |
| Housing material: | Steel |
| Orientation: | Landscape/Portrait |
| Product colour: | Black |
| Depth: | 555 |
| Minimum vesa mount: | 75 x 75 |
| Mounting: | Clamp/Grommet |
| Mounting type: | Desk |
| Number of displays supported: | 1 |
| Panel mounting interface: | 100 x 100/75 x 75 |
| Adjustable depth: | Jā |
| Angle of rotation: | 360 |
| Cable management: | Jā |
| Depth adjustment range: | 0 - 490 |
| Height adjustment: | Jā |
| Summary: | Neomounts DS70-810BL1 Monitor arm 17-32" - gas spring - space saving - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black |
