| Unit box height: | 0.51 |
| Unit box length: | 0.52 |
| Number of rear fans supported (max): | 1 |
| Depth: | 450 |
| Height: | 463 |
| Number of top fans supported (max): | 2 |
| Unit box width: | 0.29 |
| Number of expansion slots: | 7 |
| Width: | 231 |

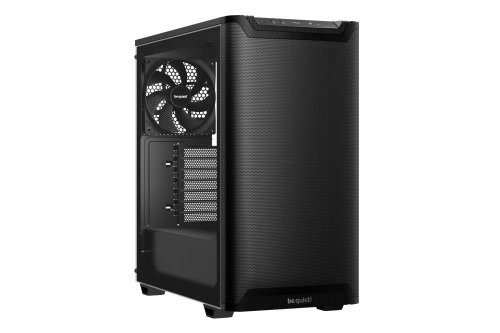

| Description: | Comfortably compact Pure Base 501 is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.
REDUCED TO THE MAX Classic appearance Without any distractions, Pure Base 501 is reduced to excel at its core functions and is aimed at users that appreciate an unagitated presentation.
PERFECT CASE FAN Fan blades optimized for high airflow With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM provides the performance that is needed for demanding configurations.
MORE THAN MEETS THE EYE Generous space for high-end hardware Despite its compact dimensions, Pure Base 501 offers enough space for high-end graphics cards and large coolers. Triple fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fan |
| Vendor homepage: | https://www.bequiet.com/en/case/5321 |
| Model: | BG073 |
| Model name: | PURE BASE 501 |
| Rear fans diameters supported: | 120/140 |
| Rear fans installed: | 1x 140 mm |
| Rear radiator sizes supported: | 120/140 |
| Top fans diameters supported: | 120/140 |
| Units per shipping box: | 1 |
| Unit calculated volume: | 0.07691 |
| Unit calculated weight: | 8.25 |
| Maximum air pressure: | 0.96 |
| Maximum airflow: | 57.4 |
| Number of front fans supported (max): | 2 |
| Form factor: | Midi Tower |
| Material: | Acrylonitrile butadiene styrene (ABS)/Steel |
| Front fans installed: | 1x 140 mm |
| Front radiator sizes supported: | 120/140/240/280/360 |
| Front fans diameters supported: | 120/140 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 2 |
| Maximum cpu cooler height: | 178 |
| Maximum psu length: | 180 |
| Number of 2.5" bays: | 5 |
| Number of 3.5" bays: | 2 |
| On/off button: | Jā |
| Product colour: | Black |
| Reset button: | Jā |
| Supported motherboard form factors: | ATX/micro ATX/Mini-ITX |
| Type: | PC |
| Power supply included: | No |
| Supported power supply form factors: | ATX/PS2 |
| Audio input: | Jā |
| Audio output: | Jā |
| Package width: | 292 |
| Package weight: | 7800 |
| Package height: | 503 |
| Weight: | 6700 |
| Package depth: | 518 |
| Top radiator sizes supported: | 120/240 |
| Supported hdd sizes: | 2.5/3.5 |
| Compliance certificates: | CE/REACH/RoHS |
| Summary: | be quiet! PURE BASE 501 Black. Form factor: Midi Tower, Type: PC, Product colour: Black. Supported power supply form factors: ATX, PS2. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 140 mm. Supported HDD sizes: 2.5,3.5". Width: 231 mm, Depth: 450 mm, Height: 463 mm |
| Cooling & ventilation system: | front 1x Pure Wings 3 140mm PWM; rear 1x Pure Wings 3 140mm PWM |
