| Progressive scan: | Jā |
| White balance: | Auto |

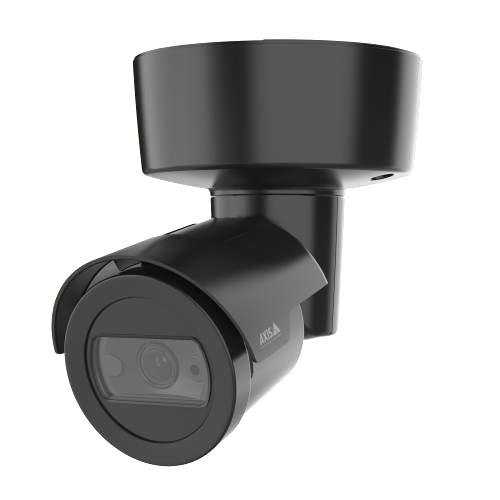

| Model: | M2036-LE |
| Form factor: | Bullet |
| Description: | Ideal for tough environments and rough weather, AXIS M2036-LE delivers Quad HD 1440p/4 MP. With a deep learning processing unit, it enables unique opportunities for analytics based on deep learning on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This IK08-rated camera offers flexible and cost-efficient installation including support for PoE. Edge-to-edge technology allows for smart pairing with Axis Speakers. Plus, a spacious, sealed back box ensures secure cable management. - Analytics with deep learning; Compact, lightweight design; Outdoor-ready with IR illumination; Quad HD 1440p/4 MP; Zipstream supporting H.264/H.265
|
| Vendor homepage: | https://www.axis.com/products/axis-m2036-le |
| Night vision distance: | 20 |
| Unit box height: | 0.135 |
| Unit box length: | 0.165 |
| Unit box width: | 0.115 |
| Units per shipping box: | 1 |
| Unit calculated volume: | 0.002562 |
| Internal memory: | 1024 |
| Ethernet lan (rj-45) ports: | 1 |
| Active tampering alarm: | Jā |
| Flash memory: | 512 |
| Unit calculated weight: | 0.71 |
| Connectivity technology: | Wired |
| Day/night mode: | Jā |
| Wi-fi: | No |
| Compatible memory cards: | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Built-in hdd: | No |
| Card reader integrated: | Jā |
| Security algorithms: | 802.1x RADIUS/EAP-TLS/HTTPS/SSH |
| Certification: | CISPR 24, CISPR 35, EN 55032 Class A, EN 55035,
EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A,
ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35,
RCM AS/NZS CISPR 32 Class A, VCCI Class A
IEC/EN 62368-1, IEC 62471, IS 13252
IEC 60068-2-X, IEC/EN 60 |
| Placement supported: | Indoor & outdoor |
| Ptz modes: | Digital PTZ |
| Type: | IP security camera |
| Wide dynamic range (wdr): | Jā |
| Camera shutter speed: | 1/38500 - 1/5 |
| Lens viewing angle, horizontal: | 130 |
| Lens viewing angle, vertical: | 81 |
| Closest focusing distance: | 0.5 |
| Fixed focal length: | 2.4 |
| Maximum aperture number: | 2.1 |
| Number of lenses: | 1 |
| Infra-red wavelength: | 855 |
| Led type: | IR |
| Night vision: | Jā |
| Sensor type: | CMOS |
| Minimum illumination: | Nav |
| Infrared (ir) cut-off filter: | Jā |
| Languages support: | English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Number of languages: | 12 |
| Bit rate control: | Variable Bit Rate (VBR) |
| Maximum resolution: | 2304 x 1728 |
| Frame rate: | 30 |
| Image stabilizer: | Jā |
| Video motion detection: | Jā |
| Power consumption (max): | 12.95 |
| Power consumption (typical): | 5 |
| Power source type: | PoE |
| Operating relative humidity (h-h): | 10 - 100 |
| Operating temperature (t-t): | -30 - 50 |
| Storage relative humidity (h-h): | 5 - 95 |
| Storage temperature (t-t): | -40 - 65 |
| Diameter: | 101 |
| Length: | 170 |
| Weight: | 491 |
| Number of cameras: | 1 |
| Doesn't contain: | BFR/PVC |
| Number of sensors: | 1 |
| Optical sensor size: | 1/2.7 |
| Alert notification type: | E-mail |
| Https encryption: | Jā |
| Ip address filtering: | Jā |
| Password protection: | Jā |
| Privacy masking: | Jā |
| Supported graphics resolutions: | 2304 x 1728/2668 x 1512 |
| Supported video modes: | 1440p |
| Text caption overlay: | Jā |
| Total megapixels: | 4 |
| Video compression formats: | H.264/H.265/M-JPEG |
| Video intelligence analytic: | Jā |
| Video recording: | Jā |
| Video streaming: | Jā |
| Bluetooth: | No |
| Ethernet lan: | Jā |
| Networking standards: | IEEE 802.3/IEEE 802.3af/IEEE 802.3at |
| Quality of service (qos) support: | Jā |
| Supported network protocols: | IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPĀ®, SNMP v1/v2c/v3 (MIB-II), DNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, MQTT v3.1.1 |
| Summary: | Axis 02134-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Bullet. Lens viewing angle, horizontal: 130°, Lens viewing angle, vertical: 81°, White balance: Auto. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Fixed focal length: 2.4 mm, Closest focusing distance: 0.5 m |
| International protection (ip) code: | IP66, IP67 |
| Mounting type: | Ceiling/wall |
| Product colour: | Black |
| Ik code: | IK08 |
| Housing material: | Aluminium/Plastic |
